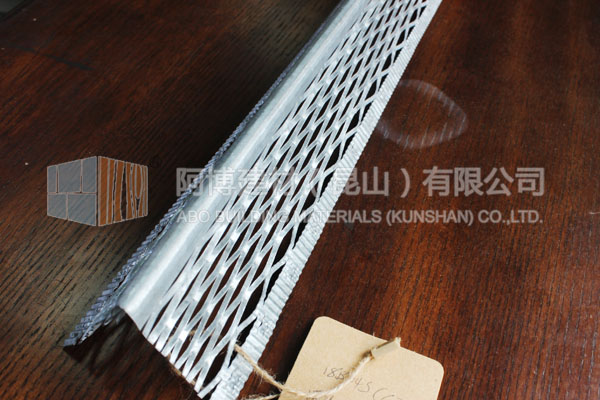

R03 corner beads

R03 corner beads

Expanded angle beads with reinforcement flange

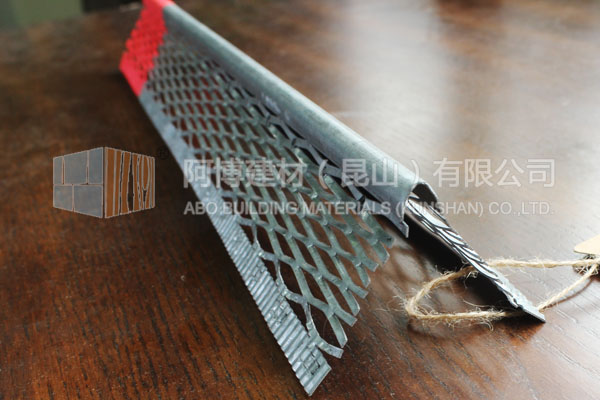

R03 angle beads

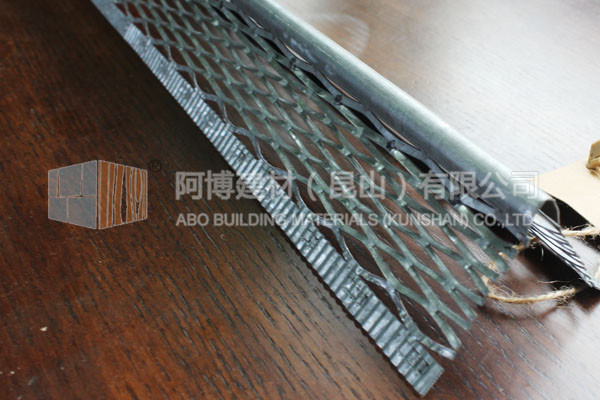

Angle bead with reinforce flange

Description of R01 corner beads

An expanded flange corner bead with extra long expanded flange. It has a steel rib running the length of the bead to provide nail holes and extra rigidity.
R03, 4.5mm radius-53.47mm legs.
the expanded 55mm wings make the cement to form s strong bond between the base wall, and bead allowing for up to 10mm of cement render to be applied.
The wing is expanded up to the rib of the bead, which has a 4.5mm radius, providing a smooth strong knock-resistant corner.

Material

0.3-0.7mm Galvanized sheet, stainless steel sheet, aluminum sheet.

Specification

Model
The width of wing
Material
Material thickness
Length
Pc/Box
AB-R03/R=4.5/54.08*54.08
54.08*54.08
GI/SS
0.3-0.7
2400/2700/3000mm
50
Notice: All dimensions can be customized according to your requirements.

Applications

The productions are mainly used for reinforcement purposes and for plaster or render embracing. Meantime, it provides good finishing and stronger edges, that can help to improve the life time of any buildings. Angle Bead are resistant to chips, cracks and impact damage. It protects the corner and edges and offers good shape.
The good performance of the item;
Galvanized finish to resist corrosion;
Perforated wing increases bond;
Reinforces plaster edges to prevent accidental damage;
Can be fixed with plaster, adhesive or mechanical fixings;
