Description of R01 corner beads

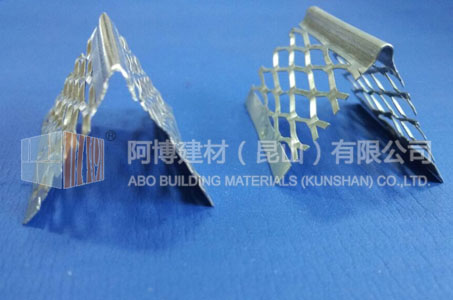

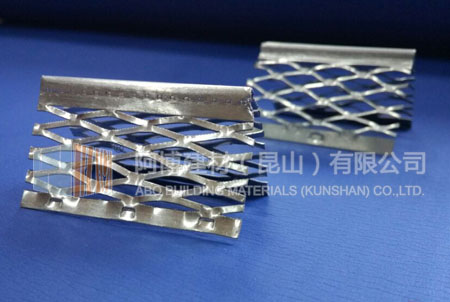

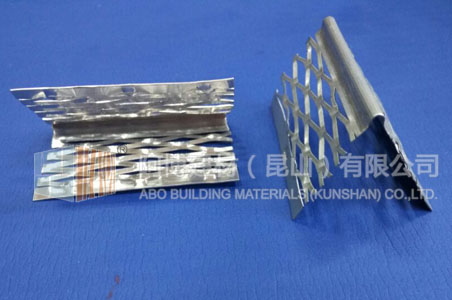

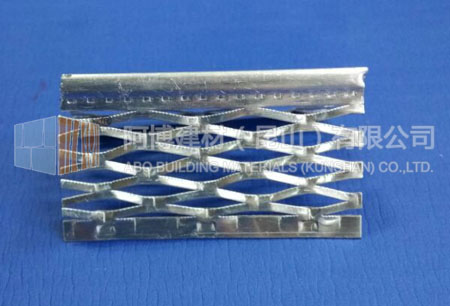

An expanded flange corner bead with extra long expanded flange. It has a steel rib running the length of the bead to provide nail holes and extra rigidity.

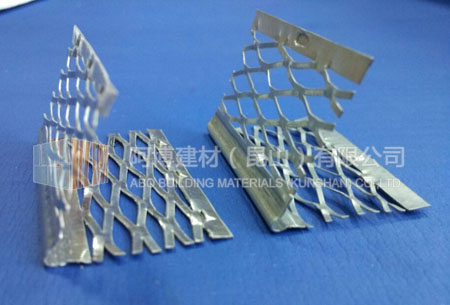

The P32 Plaster-lock bead is produced from 0.4mm GI steel, is an ideal for construction application. The angle beads with 32mm expanded wings to allow to get through and under the bead. Meantime, locking the beads to the building board.

Material

0.3-0.7mm Galvanized sheet, stainless steel sheet, aluminum sheet.

Specification

Model	The width of wing	Material	Material thickness	Length	Pc/Box
AB/R=2/32*32	32*32	Aluminum GI Steel	0.3-0.7	2400/2700/3000mm	50
Notice: All dimensions can be customized according to your requirements.

Applications

The productions are mainly used for reinforcement purposes and for plaster or render embracing. Meantime, it provides good finishing and stronger edges, that can help to improve the life time of any buildings. Angle Bead are resistant to chips, cracks and impact damage. It protects the corner and edges and offers good shape.
The good performance of the item;
Galvanized finish to resist corrosion;
Perforated wing increases bond;
Reinforces plaster edges to prevent accidental damage;
Can be fixed with plaster, adhesive or mechanical fixings;
