Description

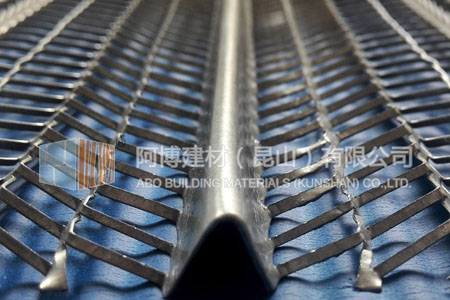

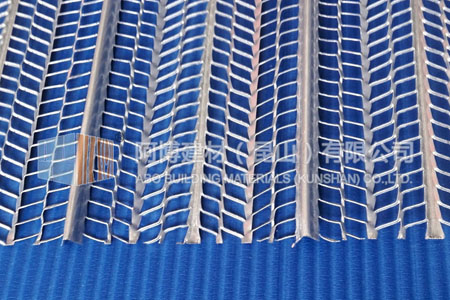

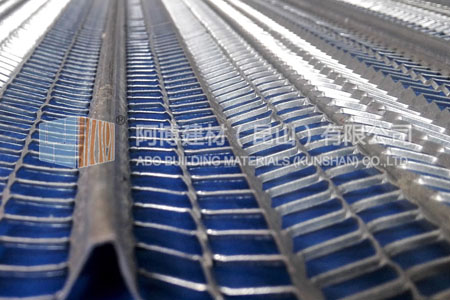

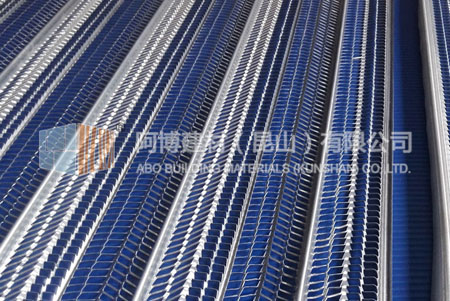

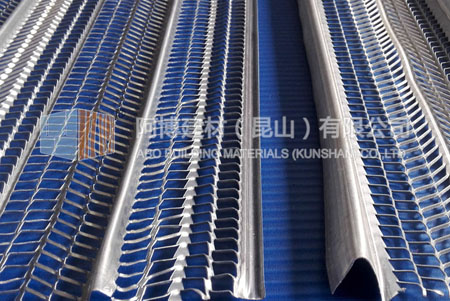

3/8”rib lath, its heavy construction with seven longitudinal ribs, each 3/8” deep and eight small flat ribs . It’s used almost exclusively for ceiling and soffit application. The herringbone mesh pattern allows excellent keying of the stucco to the lath for horizontal or ceiling installation.
Features: More rigid; Greater stiffness; Wider spacing; Easy keying of plaster

Matertal:

0.3-0.7mm Stainless steel or 0.3-0.7mm galv. steel

Specification

Model	Rib height	Rib distance (mm)	Width (mm)	Aperture size (mm)	Remark
AB-1/8-4-75-450	1/8"	75	450	9*17	9-rib & 4-aperture
AB-3/8-4-75-450	3/8"		450
AB-1/8-4-75-600	1/8"		600
AB-3/8-4-75-600	3/8"		600
AB-1/8-4-75-750	1/8"		750
AB-3/8-4-75-750	3/8"		750
AB-1/8-8-100-600	1/8"	100	600	7*11	7-rib & 8-Aperture
AB-3/8-8-100-600	3/8"
AB-3/4-8-100-600	3/4"
AB-5/8-8-100-600	5/8"
AB-7/8-8-100-600	7/8"
AB-1/8-4-100-600	1/8"			9*20	7-rib & 4-aperture
AB-3/8-4-100-600	3/8"
AB-3/4-4-100-600	3/4"
AB-5/8-4-100-600	5/8"
AB-7/8-4-100-600	7/8"
AB-1/8-8-150-600	1/8"	150	600	11*17	5-rib & 8-aperture
AB-1/4-8-150-600	1/4"
AB-3/4-8-100-700	3/4"	100	700	7.2*9.5	5.66kg
AB-7/8-8-100-700	7/8"	100	700	7.2*9.5	6kg
AB-3/8-8-98-686	3/8"	98	686	7.2*9.5	3.34kg
AB-3/4-8-98-686	3/4"	98	686	7.2*9.5	5.4kg
AB-3/8-10-98-686	3/8”	98	686	7.2*8.2	3.2kg

Application

Rib lath is idea for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face. Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together. Stainless steel fixing should be used at sufficient intervals to hold the lath firmly in position.

Competitive advantages

Good and high quality control , prompt delivery , new product , competitive prices , earth-friendly products
